Manual V200 FOV (8″x, 6″y, 8″z)

$23,490.00

Magellan Vision System Features
> 5 megapixel digital camera
> Programmable 6.5 to 1 motorized zoom
> Programmable LED illumination
> Quick release X and Y axis controls
> Thru-Lens Laser Spot Part finder
> Sturdy granite machine base
> Multi-Touch Windows 10 panel PC
> High precision Swiss rails and bearings

Technical Specifications
> Resolution: .0005mm/.00002”
> XY Accuracy: (3+L/100) micrometers
> Max Stage Load: 60 lbs
> 0x to 160x Par Central Motorized Zoom Lens
> Illumination:
> Tele-Centric Profile LED
> Quad Surface Ring Light
> Proprietary VTL Inner Ring Light
> Power: 110-240 VAC, 50-60Hz 70w

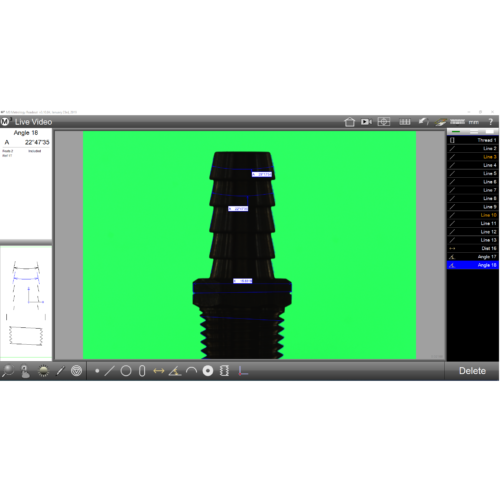

Metlogix© Measuring Software
> Multi-touch user interface
> Multi-point video edge detection
> Video edge focus meter
> Part programming
> DXF import with video overlay
> Feature data report and export
> Live image capture
> Live graphical-part view
> Lamp and zoom controls
> User programmable memories
